Kawe MedCharge 4000 Charging Station

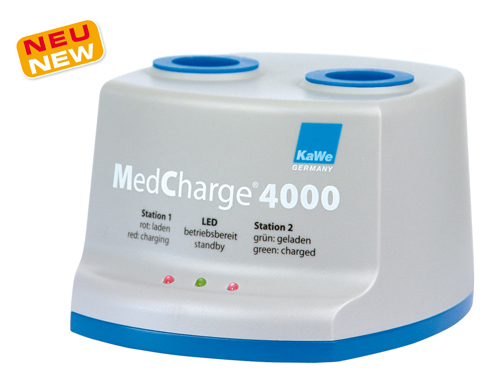

KaWe MedCharge® 4000
is the charging station for the metal handles KaWe EUROLIGHT®-, KaWe COMBILIGHT®- and the laryngoscope line in small (AA) and medium (C) design, with the exception of the Economy and plug charging handles.
Intelligent electronics control the progress of the rechargeable battery cells during the charging process. An overcharge of the rechargeable battery is thus avoided and the service life of the individual rechargeable batteriy is optimally utilized.
KaWe MedCharge® 4000 recognizes the rechargeable battery type as well as its state of charge and individually accomodates the charge state using to the Microcontroll System. With an adequate adapter, the laryngoscopes of other manufacturers can also be recharged without problem. The operation time of medium-sized rechargeable batteries is approximately 3 hours, whereas the smaller models last approx. 2 hours.

• Power plug ALL in ONE EU 230 V / GB 240 V / US 110 V
• 2 adapter sleeves for (AA) handles
• wall-mounted holder
• Selection of different power plugs for 2.5 V and 3.5 V charging handles
• for 2.5 V and 3.5 V KaWe batteries (NiMH, NiCd and Li-Ion)

• input voltage: 100 V - 240 V +/- 10%, 50 - 60 Hz
• max. power: 1.2 A
• efficiency factor: 90 - 93 %
• chargeable capacity: min. 250 mAh, max. 4500 mAh
• input voltage charging station: 9 VDC +/- 10 %
• output voltage in stand-by: < 9 VDC
• rated output voltage: 2x 3.6 VDC
• rated charging current: 2x 250 mA +/- 10 %
• charge end power: 10 - 30 mA for Li-Ion
• electric strength: 4 kV
• safety rating: II
• operating temperature: 0° C - +40° C
• storage temperature: -25° C - +70° C
